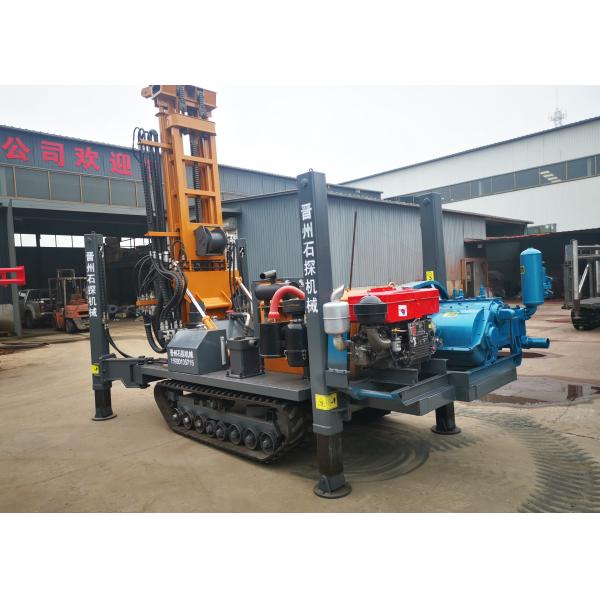

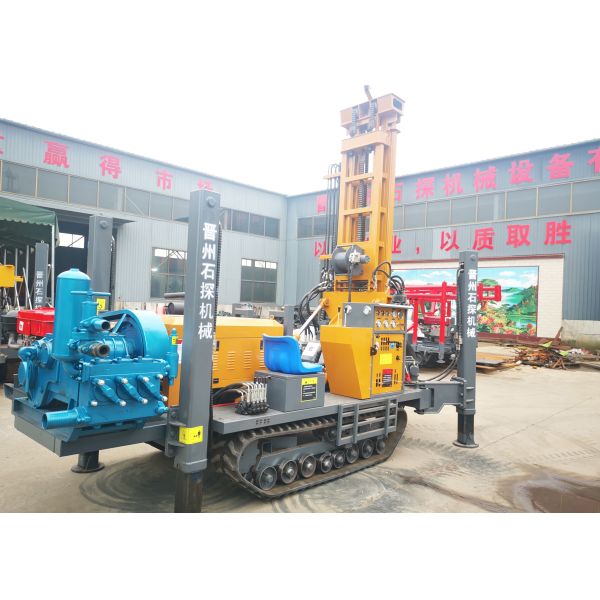

ST 260 Large Pneumatic Drilling Rig
High-Efficiency & Heavy-Duty Drilling Solution
Are you seeking a reliable, high-performance drilling rig for large-scale water borehole projects? The ST 260 Large Pneumatic Drilling Rig from Shitan Machinery delivers exceptional performance with a maximum drilling depth of 260 meters and robust 16-ton lifting force. This heavy-duty machine is engineered to tackle the toughest drilling conditions, providing consistent results for both commercial and industrial water well drilling applications.
Core Advantages
- Exceptional Drilling Efficiency
- Powerful & Stable Performance
- Compact Design & High Maneuverability
- Versatile Application Range
Technical Specifications
| Product Name |
ST 260 Large Pneumatic Drilling Rig |
| Brand |
Shitan |
| Origin |
Jinzhou, Hebei Province, China |
| Maximum Drilling Depth |
260m |
| Walking Speed |
2.5km/h |
| Footage Efficiency |
10-35m/h |
| Air Consumption |
16-55m³/min |
| Dimension (L*W*H) |
4 * 1.7 * 2.2m |
| Lifting Force |
16 T |
| Weight |
6000kg |
| Drilling Rod Diameter |
76mm |
| Working Wind Pressure |
1.25-3.5 MPa |
| Drilling Hole Diameter |
105-260mm |
| Climbing Speed |
20 m/min |
Why Choose Shitan ST 260 Pneumatic Drilling Rig?
Shitan has been a trusted name in the drilling industry for years, dedicated to producing high-quality, durable drilling equipment. The ST 260 is manufactured in our state-of-the-art facility in Jinzhou, Hebei Province, adhering to strict quality control standards to ensure reliability and longevity.
- Professional Manufacturing
- Customization Support
- Comprehensive After-Sales Service
Application Scenarios
The ST 260 Large Pneumatic Drilling Rig is widely used in various water borehole drilling projects, including:
- Commercial and industrial water supply well drilling
- Agricultural irrigation well drilling
- Residential community water well drilling
- Geological exploration drilling in water-rich areas
- Drilling projects in mountainous, hilly, and plain areas
Product Gallery
In operation at worksite
Drilling mechanism close-up
Side profile with dimensions
Control panel and operator station
Deep borehole drilling operation
Transport configuration
Drilling rod and bit assembly
