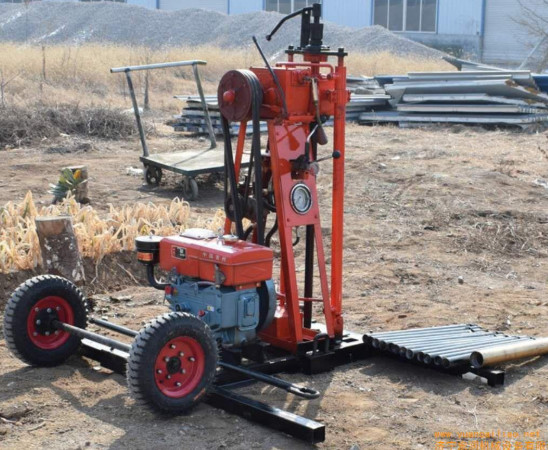

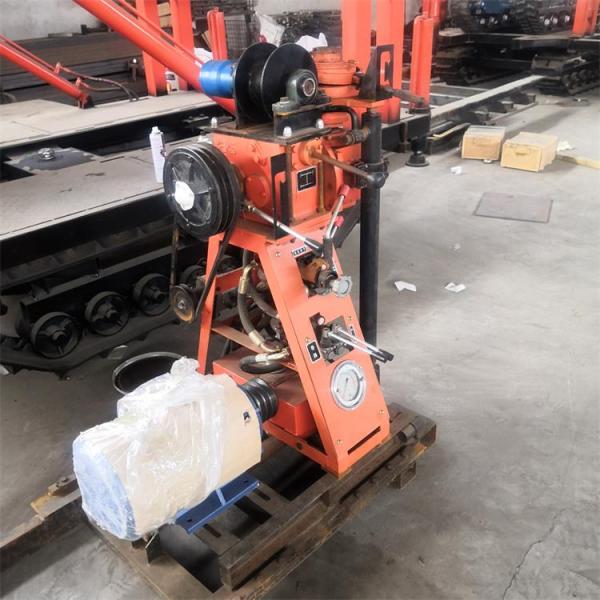

ST 50 Customized SPT Soil Test Engineering Drilling Rig
Product Introduction
This is a high, medium and low speed drilling rig with oil pressure feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of coring samples. It is a light weight drilling rig, widely used in general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells, and earth central air conditioning wells, etc.
Technical Data
| Type |
ST50 drilling rig |
| Drilling depth (m) |
The max. 50 meter |
| Hole size diameter |
73-108mm |
| Drill pipe diameter |
42mm |
| Vertical spindle speed |
70-650 |
| Reverse rotation speed |
50-130 |
| Power |
5.7KW |
| Outsize |
1180×680×1600mm |
|
Weight
(including Gasoline engine )
|
208kg |
Product Feature
It is a portable hydraulic drill in China at present. It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.
Main Application
This is a small portable geological exploration drilling rig developed by our factory.
1. The drilling rig is suitable for water well drilling, general survey exploration, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects.
2. Alloy, diamond and composite bits can be selected for drilling according to different bottom layers.
3. It can drill grade 2-9 sandy clay and rock stratum.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
